The city of Madison offers a great opportunity for high speed rail transport. Located in the middle of Wisconsin, it is centrally located to be optimal distances from Milwaukee, Chicago, and Minneapolis. While it is relatively straight-forward for the optimal placement of HSR hub cities, it is much more complicated for the placement of individual high-speed rail stations within those hubs. First we will discuss the effect of station placement, then we will discuss factors contributing to station placement, and finally we will look at specific locations derived from the feasibility study and other station placements within Madison.

The placement of high-speed rail in a city is seen “as a factor contributing to the attractiveness of a location for economic activities" (Willigers et al, 2011). The HSR station is a direct subset of this attractiveness which makes a city more viable for economic growth. An important aspect of station placement bolstering economic development around the area has to do with what is called the “image effect” (Willigers et al, 2011). The image effect implies that the HSR system would raise the image of a city.

In this case for example, “a location with good accessibility, for example near an HSR station, might have a higher status and therefore attract offices even when these do not actually make use of HST services on a regular basis” (Willigers et al, 2011). This of course implies that HSR stations have good accessibility, which is usually true as stations often have multiple forms of local and regional public transportation and vehicle transportation access. Another important effect that HSR station placement has on cities is the change of the means of transportation into the city. From Willigers et al, a high level of train accessibility might reduce the need for a high level of car accessibility. This is an important factor for vehicle traffic on the major roadways into and out-of the major city center.

One of the most important effects that HSR stations have on cities is their ability to revitalize certain areas of the city for economic and residential development. While stations that are placed in the middle of an existing city center could be a good idea, Andersson et al states that “stations that are located sufficiently far away from the urban core will tend to attract new residential development” (Andersson et al, 2010). This station placement adjacent to the existing city center, according to Urena et al, gives “an opportunity to transform the structure of the city center and also to change the overall city image, by developing new urban projects and attracting high quality services” (Urena et al, 2009).

---

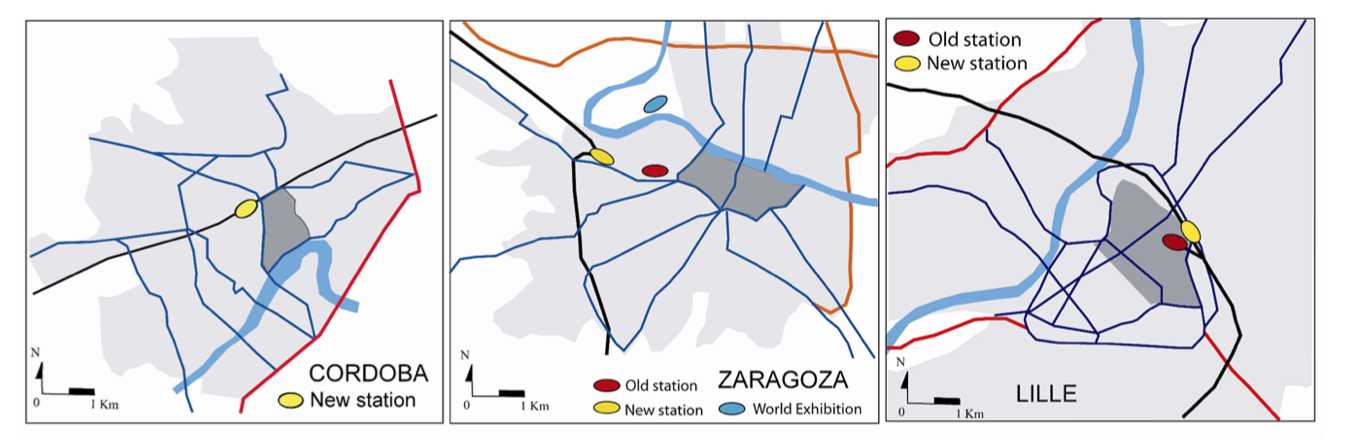

Station Placement examples in Cordoba, Zaragoza, and Lille - (Urena et al, 2009).

---

Stations may also have feedback effects including “higher prices for real estate due to the increased attractiveness of a location near an HST station, and a decrease in car accessibility because a higher urban density can lead to an increase in traffic jams.” (Willigers et al, 2011). This increase in real estate prices could have a positive and negative impact on the immediate station area, as Andersson et al explains, “railway stations should raise the value of nearby properties since they reduce commuting cost” (Andersson et al, 2010). This could have a gentrifying effect on the nearby communities, forcing some people with certain income levels to vacate the area because of the rising home prices.

The benefit to this increase in property values “should therefore be better able to attract retail activity than localities away from the station” (Andersson et al, 2010). This increase in property values seems to be a double-edged sword; as the property values rise, lower income residents are forced to move out, however more retail opportunities and development is also added to the city. This is an important topic to take a closer look at as the segregation of residents within a city by income is a major factor to socioeconomic barriers.

Two of the major frameworks that are crucial to the understandings of decisions on station location include centrality, which is concerned with “how a potential location is situated within a transport network relative to possible origins and destinations,” and connectivity, which “relates to how well this location is connected to a certain transport network” (Willigers et al, 2011). Obviously when looking at specific station locations within a city it is more important to look at connectivity, while centrality is more important for regional connections.

The connectivity and accessibility to HSR stations in a city relate to the other transportation means that are available to get to and from the station; such accessibility means include bus, bike, car transport, intermediate rail, and walking. Particularly related to intermediary transportation to stations by bus and walking, in reference to the survey done by Willigers et al, “74% of the respondents who proclaim to be located within walking distance estimate their walking to the station to be 10 min or less. Locations with a walking time below this threshold can be seen as being within acceptable walking distance; within this range the walking time does not significantly influence the utility of the location” (Willigers et al, 2011).

---

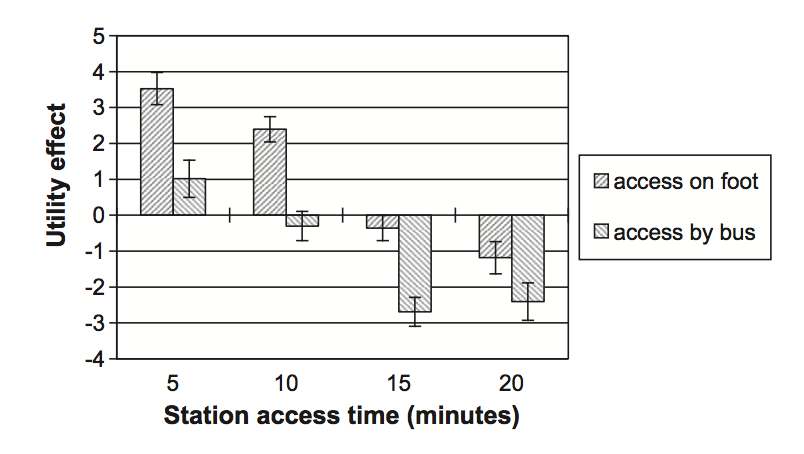

Utility effect of bus and foot accessibility to station - (Willigers et al, 2011).

---

An important to take away from these walking times is that above this 10 minute threshold, walking time becomes unimportant and other modes of transportation such as bus travel or car transport become more important. However if the bus and walking travel times are equal, “walking is preferable to taking the bus” (Willigers et al, 2011). In addition to transportation accessibility, there are other economic and social factors that influence station placement as Willigers et al suggests that “market access, the availability of qualified staff, and the availability of office space are among the location factors that are often highly ranked in studies of location choices.” (Willigers et al, 2011).

The availability of office space is a very important aspect to consider, especially when looking at HSR station in Madison. Because of Madison’s unique geography, the main city center it situated in a highly selective area where office and residential space is limited. This is why areas adjacent to the city center are important to look at as well. These areas typically have cheaper and more availability of land than areas inside the city center and also gives the city a chance to revitalize an area of the city which needs economic growth or development and also a chance to expand the city center outward as Urena et al explains, “Urban redevelopment projects of large plots of railway and unbuilt land in relatively central areas of big cities, linked to the creation of high-quality resource, HSR in this instance, can simulate the modernization of their city centers with an appropriate mixture of residential, office, commercial, and leisure areas” (Urena et al, 2009). HSR in this sense not only offers greater accessibility to the city and the region, but also can help aid in the development and modernization of cities to promote growth.

The feasibility study conducted in Madison for the HSR station placement has previously been conducted on four major sites. These sites include Dane County Airport, Yahara (First Street Station), Monroe Terrace, and the Milwaukee Road Depot (Kohl Center). The evaluation criteria for these four sites included Rail Operations, Vehicular Access, Multimodal Access, Population Access, Traffic Impacts, Parking Capacity, Rail Infrastructure Capital Costs, Site Geometrics, Environmental Scan, and Economic Impact.

We will also attempt to evaluate other sites listed in a separate document in accordance with the evaluation criteria of these fours sites. These four original sites have many potential problems that are a small part of the evaluation criteria but which could become extremely problematic in actual implementation. For example, at the Kohl Center and Monona Terrace, there is little to no parking capacity.

As well as being in the middle of downtown Madison, this could severely restrict car accessibility into the HSR station vicinity, greatly limiting the overall transport accessibility in the area. Other sites such as the Dane County Regional Airport on the other hand has ample parking for car accessibility, however because of the site location there are not many bus routes, nor are there sufficient bike or walking routes to and from the area. Out of the four potential sites listed in the feasibility assessment, the Yahara station seems to have the most potential, with car, bike, bus, and walking accessibility, and potential for development of a new station. All four of these stations have in common being inside or part of the current city center.

What our study can further look into are HSR stations that are located adjacent to the city center, or just outside the city center. Take for instance the HSR station in Lille as explained by Urena et al, “In Lille, the urban development project updated an old one, at the edge of the cities traditional business center and between the city center and the ring motorway, on railway and unbuilt military land, with an area equivalent to half of its city center” (Urena et al, 2009). Our study will be analyzing not only the current feasibility assessment sites, but will also look at other potential station locations based on GIS data provided by the City of Madison.

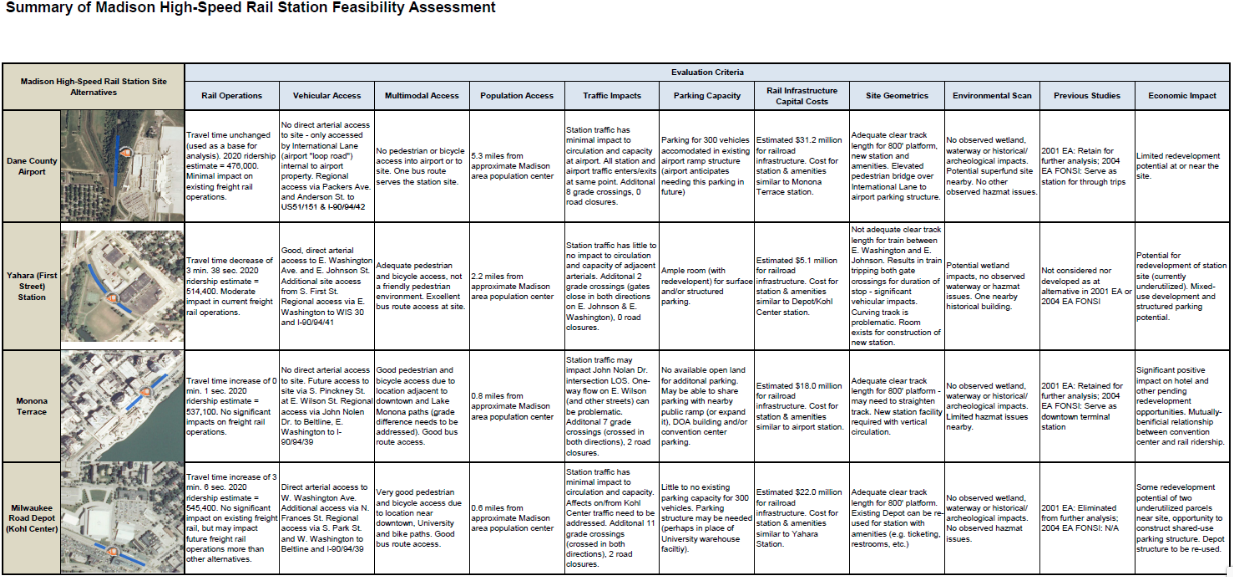

The orignal Assessment (see image above) was taken off the internet in mid-october, during our project. However, we have saved the image for our analysis. We have also calculated what we estimated to be the population center for their analysis(below), as we do not have access that information at the moment.

---

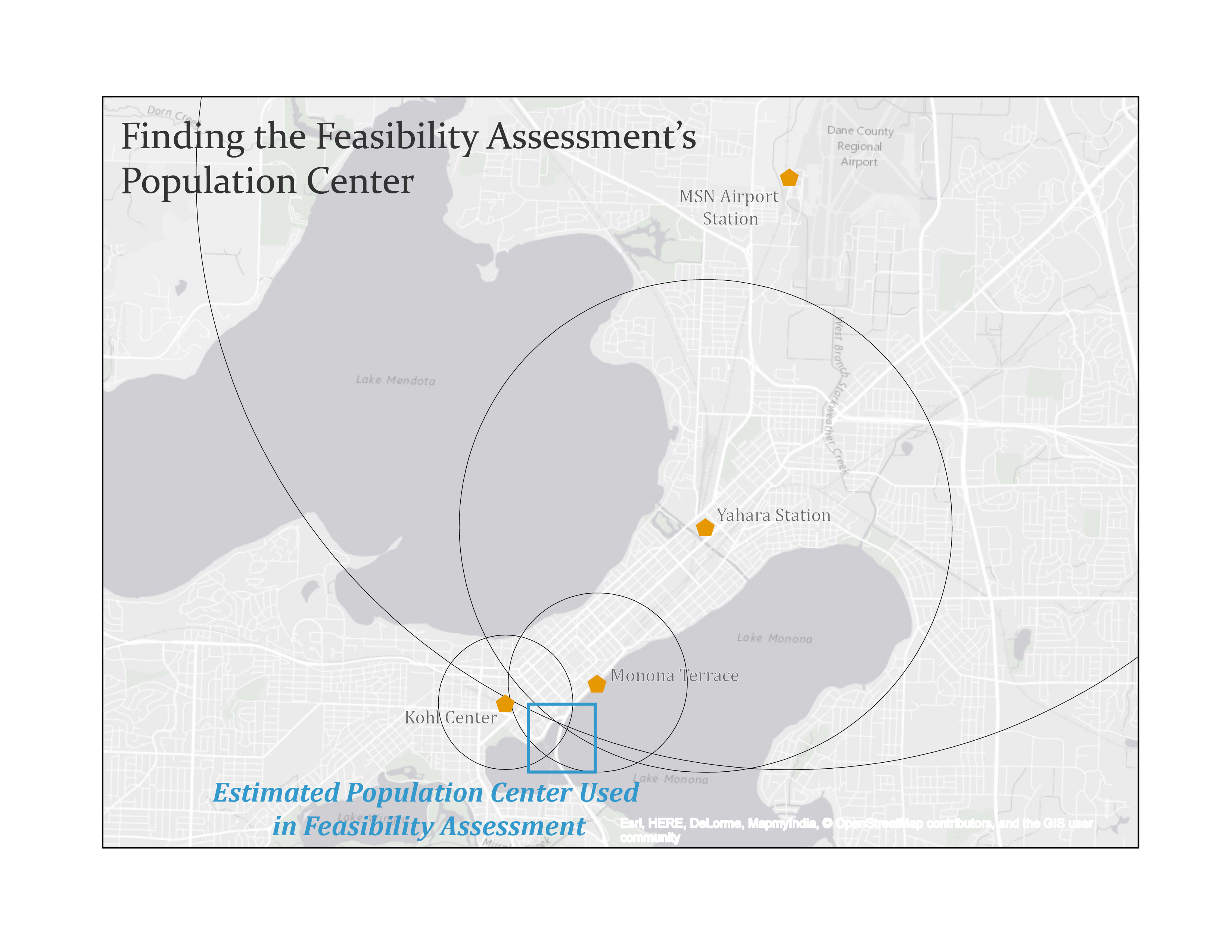

Our analysis of population Center based off station buffers (Veronica Plum 2016).

---

Next, we have gone to each station, done a landscape analysis at each of the four assessment sites. Included below feature thins noticed in these landscape assesssments in comparsion with the original analysis.

---

Image: Veronica Plum

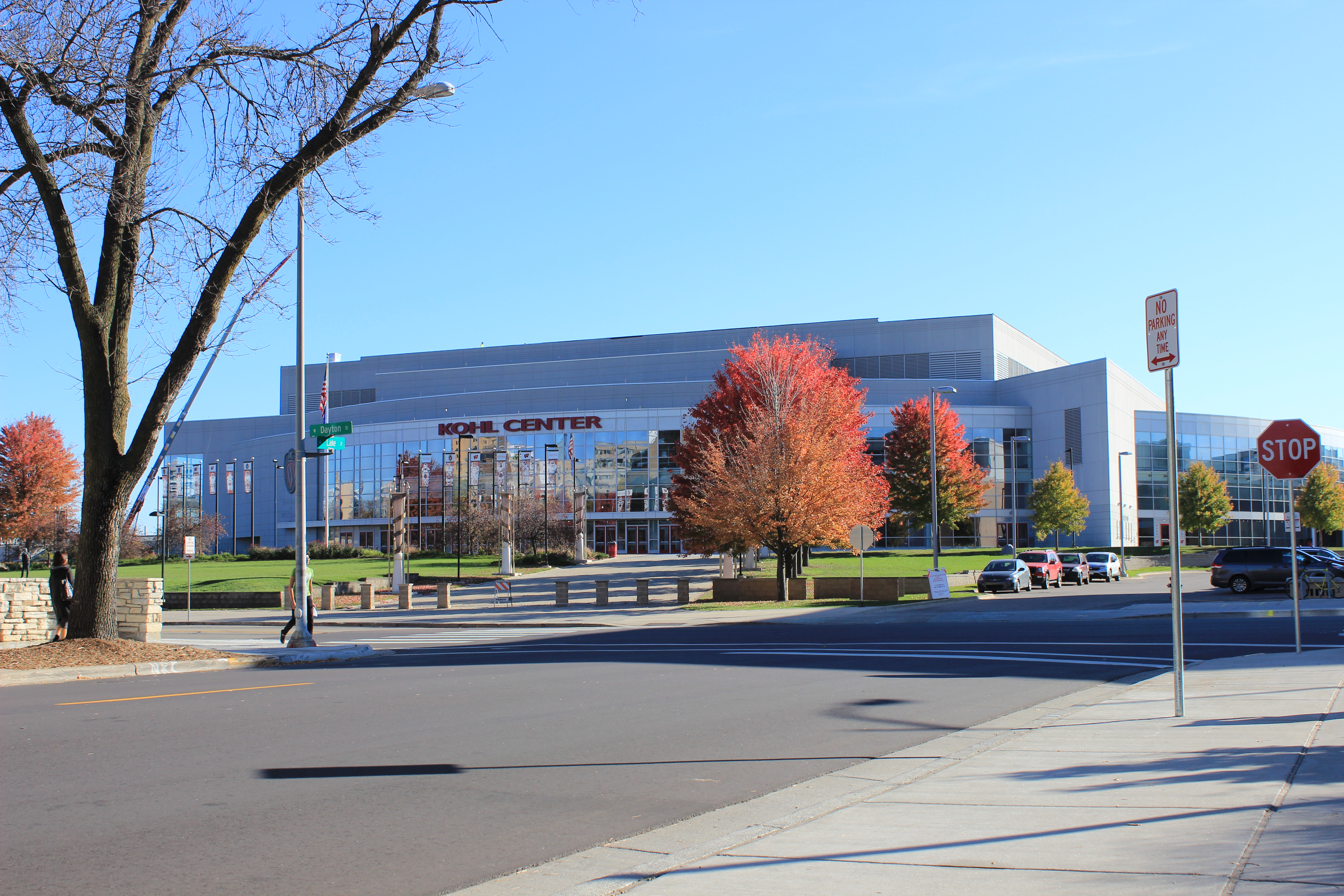

(KC-1) The Kohl Center.

---

---

Image: Veronica Plum

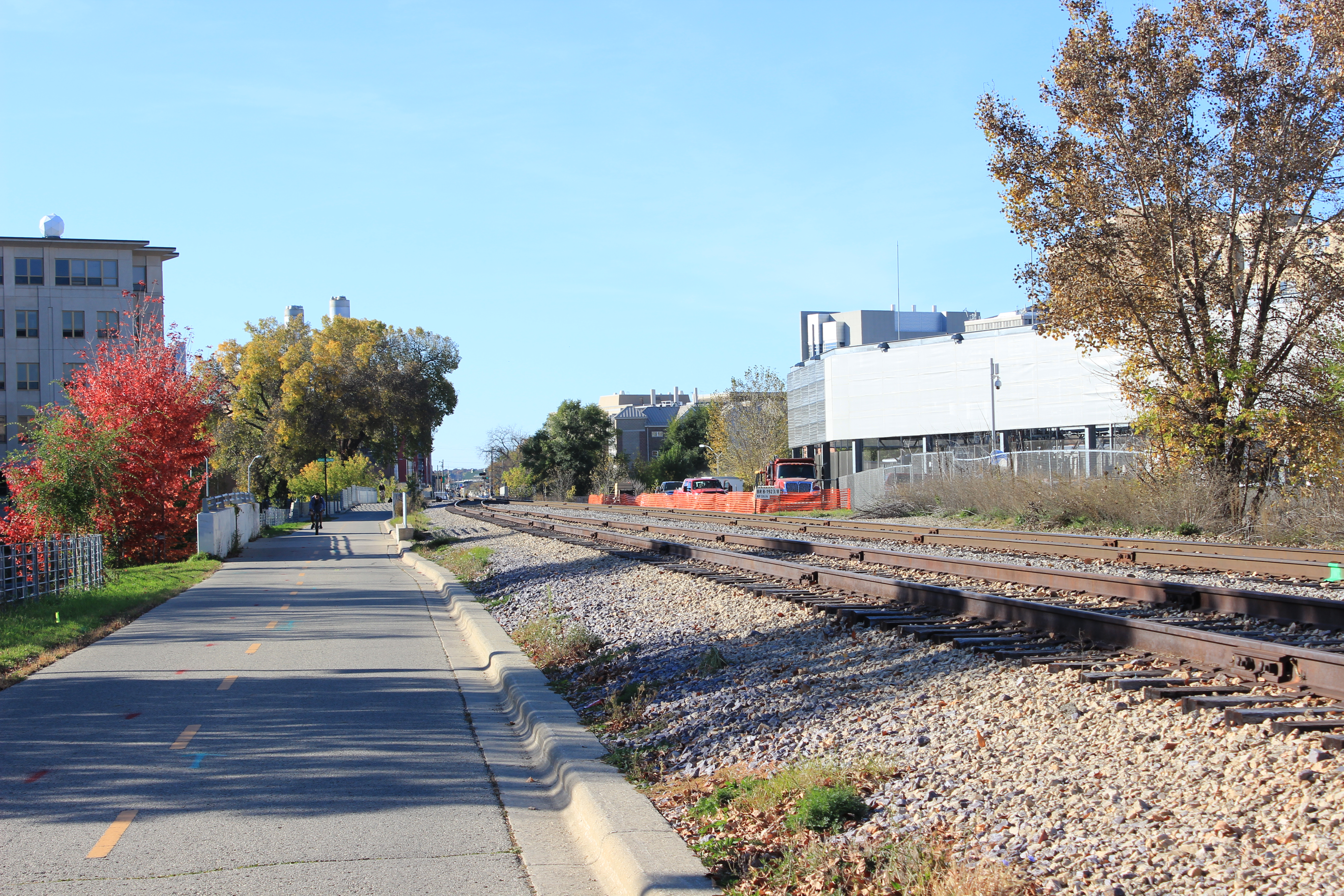

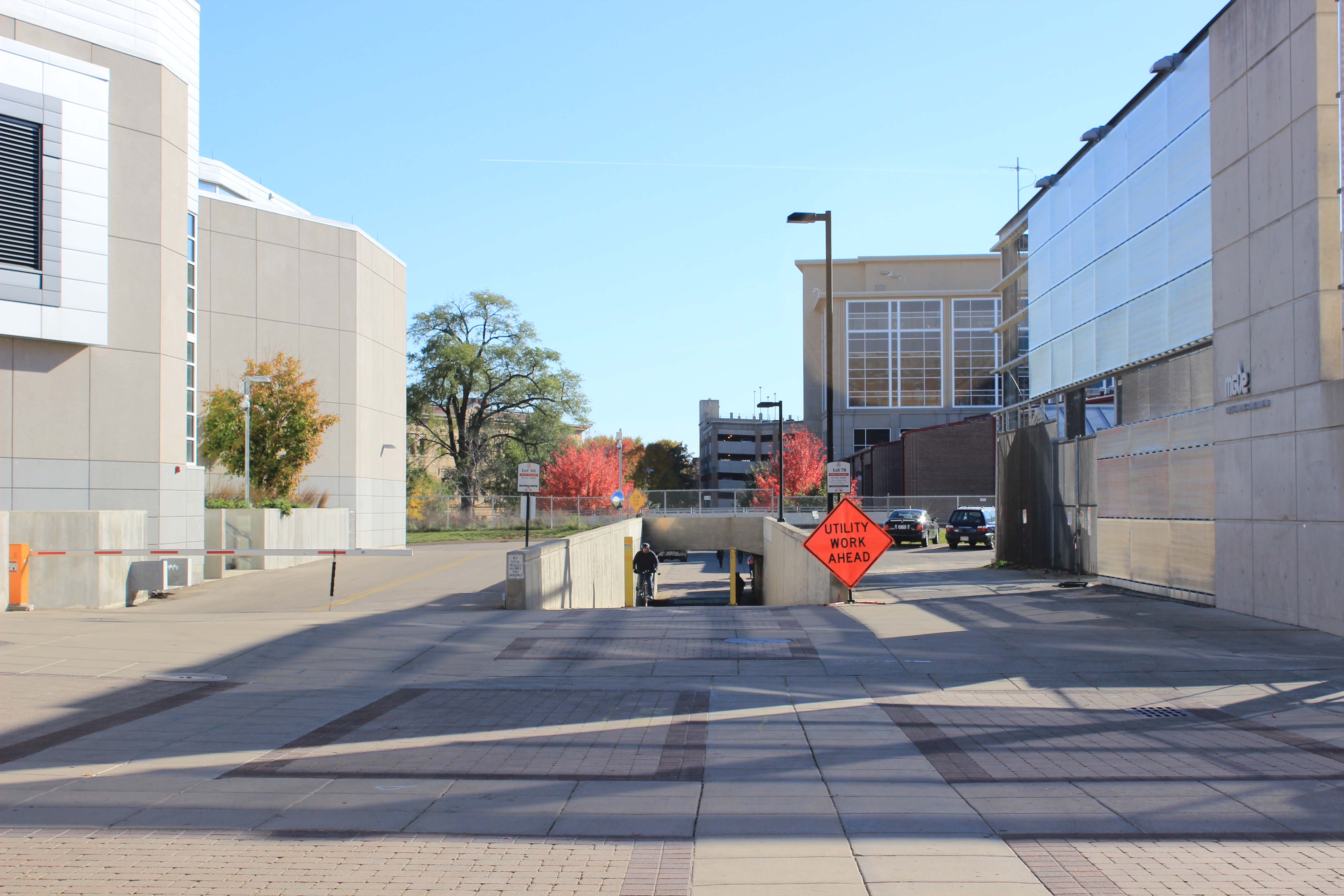

(KC-2) West of the Kohl Center and the attached LaBahn Arena there is a pedestrian tunnel. Above is the two lines of train track next to a bike trail (pictured right).

---

---

Image: Veronica Plum

(KC-3) A high speed rail station here may experience difficulty developing infrastructure without moving the bike path.

---

Space:

The Kohl Center is most definitely an attraction in Madison- it's a concert venue and sports center for both Hockey and Basketball events. While attracting Badger fans around the state would be convenient for the University Students, Alumni, and Fans alike, the space in this area is rather congested. This location probably would not have any future influence on the environment than the pre-existing rail already does, as it would follow the freight tracks closely.

Access:

Because of the array of intermodal options in this area, it may seem like this is an ideal location. However, adding another mode of transportation in this area could over congest the area and make travel times for all other modes less than ideal. If possible, it would be ideal to have a location that both enhanced the mobility of the HSR passenger all while not causing a nuisance to the movement of the average resident in Madison.

Connectivity:

Out of all the stations, the rail seems likely to have the largest impact on traffic in Madison, crossing over the most roads, and as the original assessment stated, even closing a few. Because of the close proximity of the bike paths, see image (KC-3) above, a fence would also need to be installed, and part of the bike route rerouted since there is currently not enough space for a platform and station as situated in the original assessment. If a removal of the parking lot (South of the Kohl Center), there would be furthure restriction of access for other modes of transportation on big Kohl Center events, such as Basketball and Hockey games, as well as weekdays in Madison. The train would also need to travel a future distance at this location, adding to overall travel time to other locations.

Benefits:

• Close proximity to UW-Madison Campus, Kohl Center, and other downtown attractions.

• Ridership may increase for during academic school year.

Downsides:

• Reduces overall travel time.

• Disrupts mobility in Madison.

• Station infrastructure would crowd area further.

---

Image: Veronica Plum

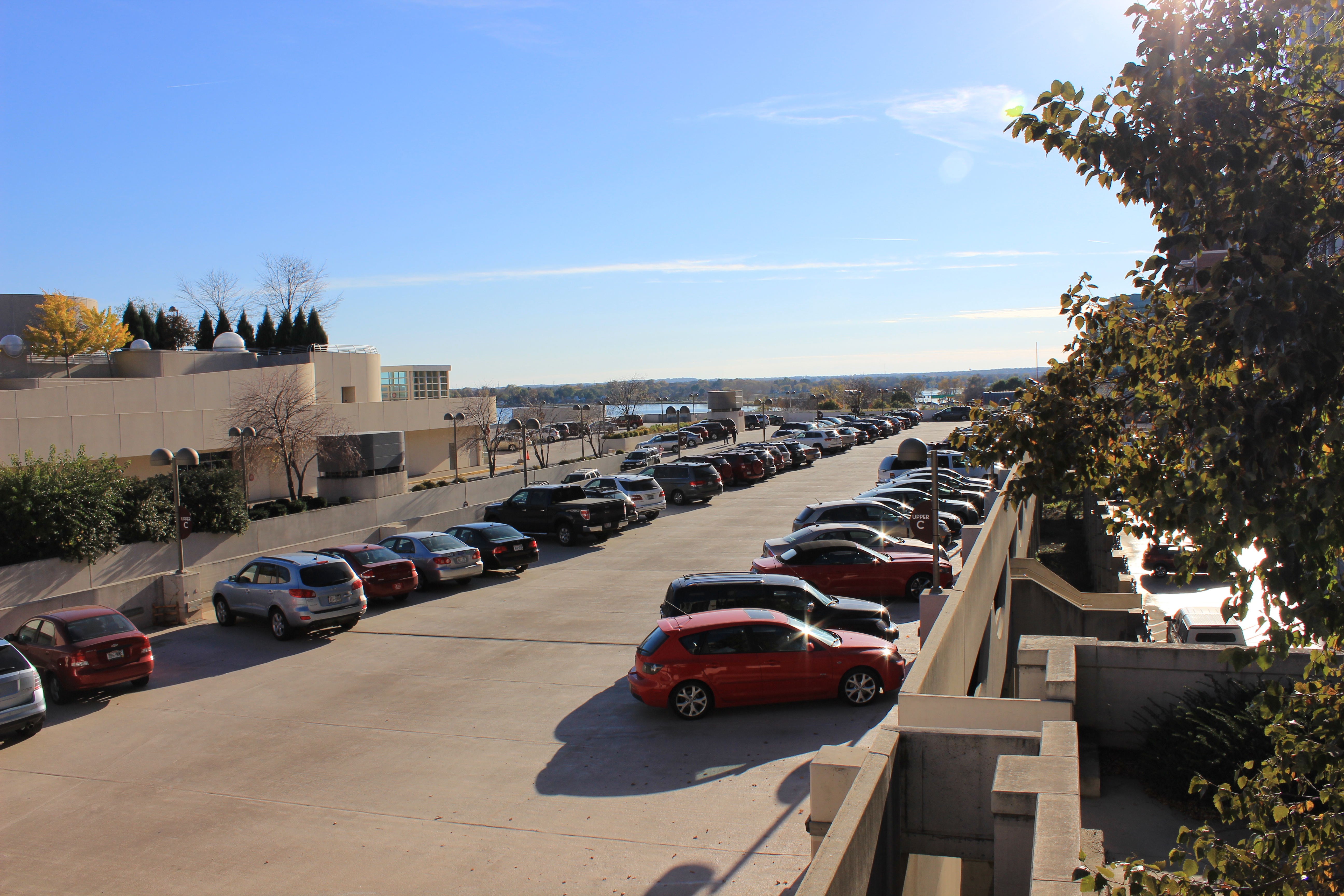

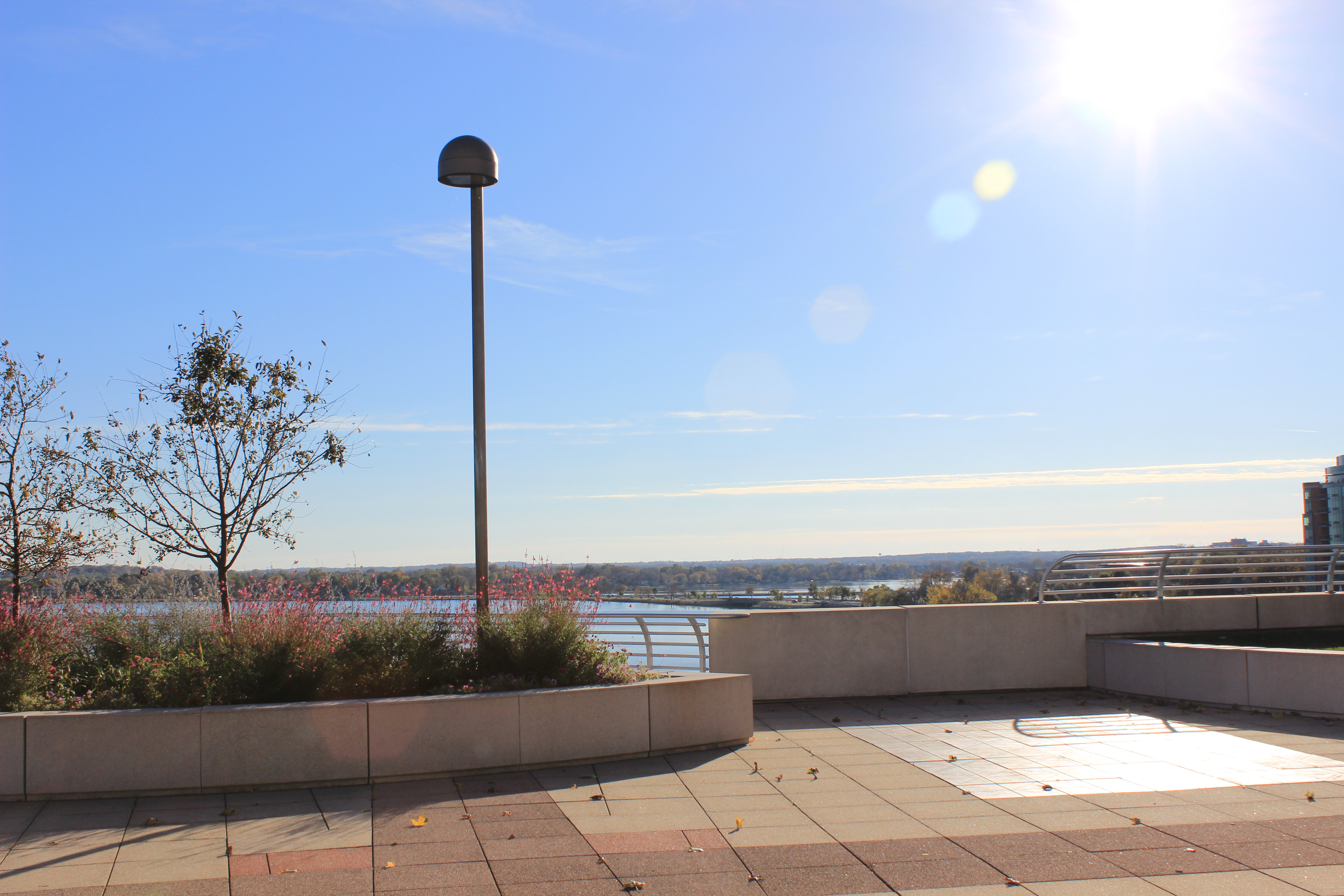

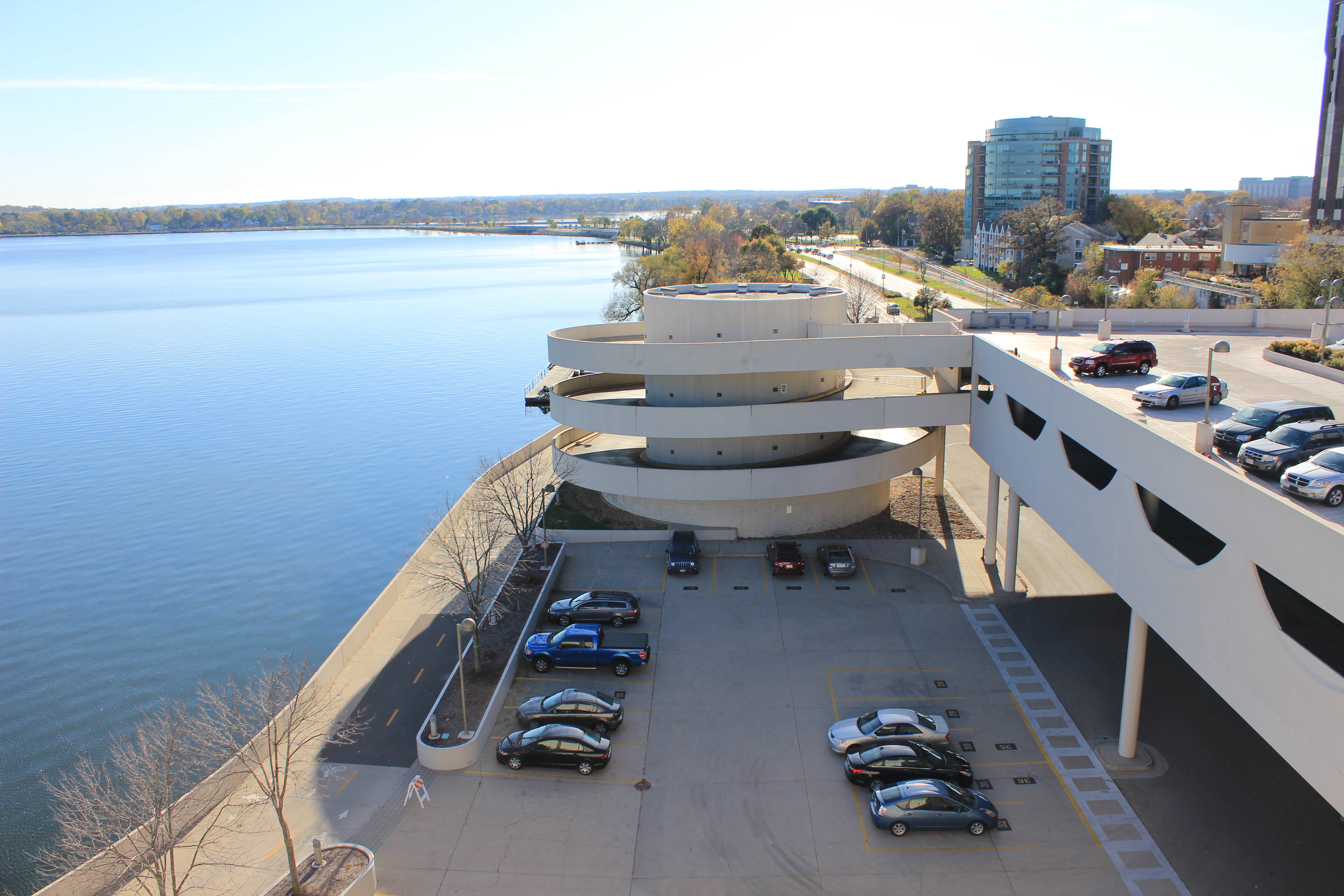

(MT-1) The parking lot at Monona Terrace is built above Highway 151. Parking is already a huge problem on the Madison Isthmus. Stressers for parking downtown would expand if a station was placed here.

---

---

Image: Veronica Plum

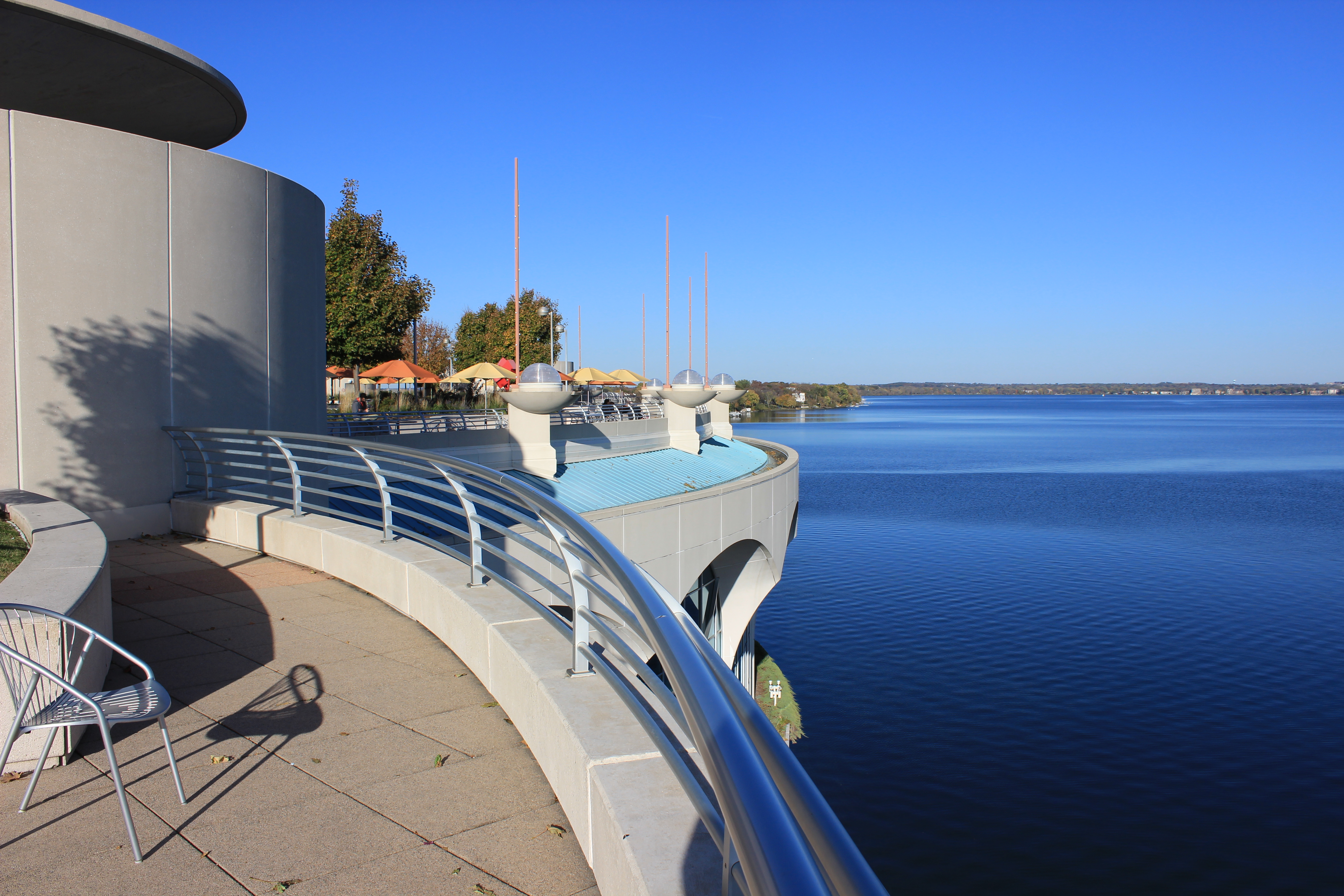

(MT-2) The parking lot at Monona Terrace is built above Highway 151. Parking is already a huge problem on the Madison Isthmus. Stressers for parking downtown would expand if a station was placed here.

---

---

Image: Veronica Plum

(MT-3) The parking lot at Monona Terrace is built above Highway 151. Parking is already a huge problem on the Madison Isthmus. Stressers for parking downtown would expand if a station was placed here.

---

Space:

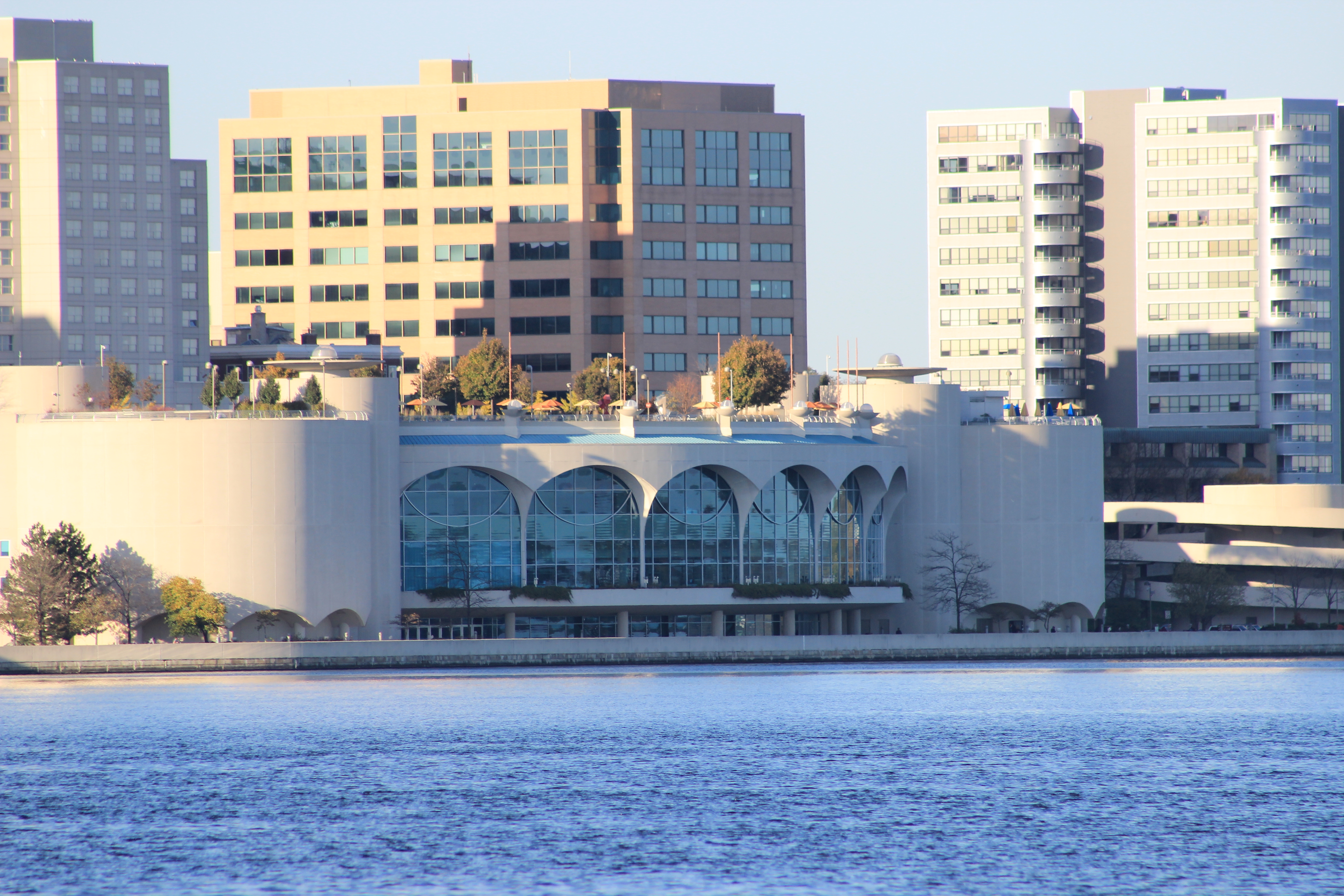

Situated in the heart of downtown Madison, Monona Terrace was originally chosen to serve as the Madison Station for the high speed rail track. There is little space to build infrastructure of the station and platform without taking down existing buildings and rerouting other transportation. The capitol building, two lakes, museums, shops, restaurants and State St (a pedestrian street), are within distance. Parking in this area is limited. The area visually pleasing and would most likely impact visitor’s impressions of Madison.

Access:

Due to the area, a variety of people would be able to access the location. The area has bike routes and lanes as well as a handful of buses going in both directions. However, a large majority of people would be able to walk to the station, or to their destination from the station, being that there is both attractions and residential developments nearby. On the other hand, this space is not suitable for individuals that desire to park their cars overnight for long periods of time, or for individuals who would like to rent a car for their stay in Madison. There is little capacity for overnight parking and rental car storage. In addition, this area is filled with one way roads that would confuse individuals from out of town.

Connectivity:

A Monona Terrace Station would block more than just roads. Congested with traffic, highway 151 runs next to and under the pre-existing structure. The high speed rail would not doubt affect the bike path. Similar to the Kohl Center, stretching the rail this far down the isthmus would result in serious changes to travel time and impact on Madison’s current transportation.

Benefits:

>Multimodal access.

>Proximity to Destinations.

>Visually Pleasing

Downsides:

>Lacks parking space and further congests traffic.

---

Image: Veronica Plum

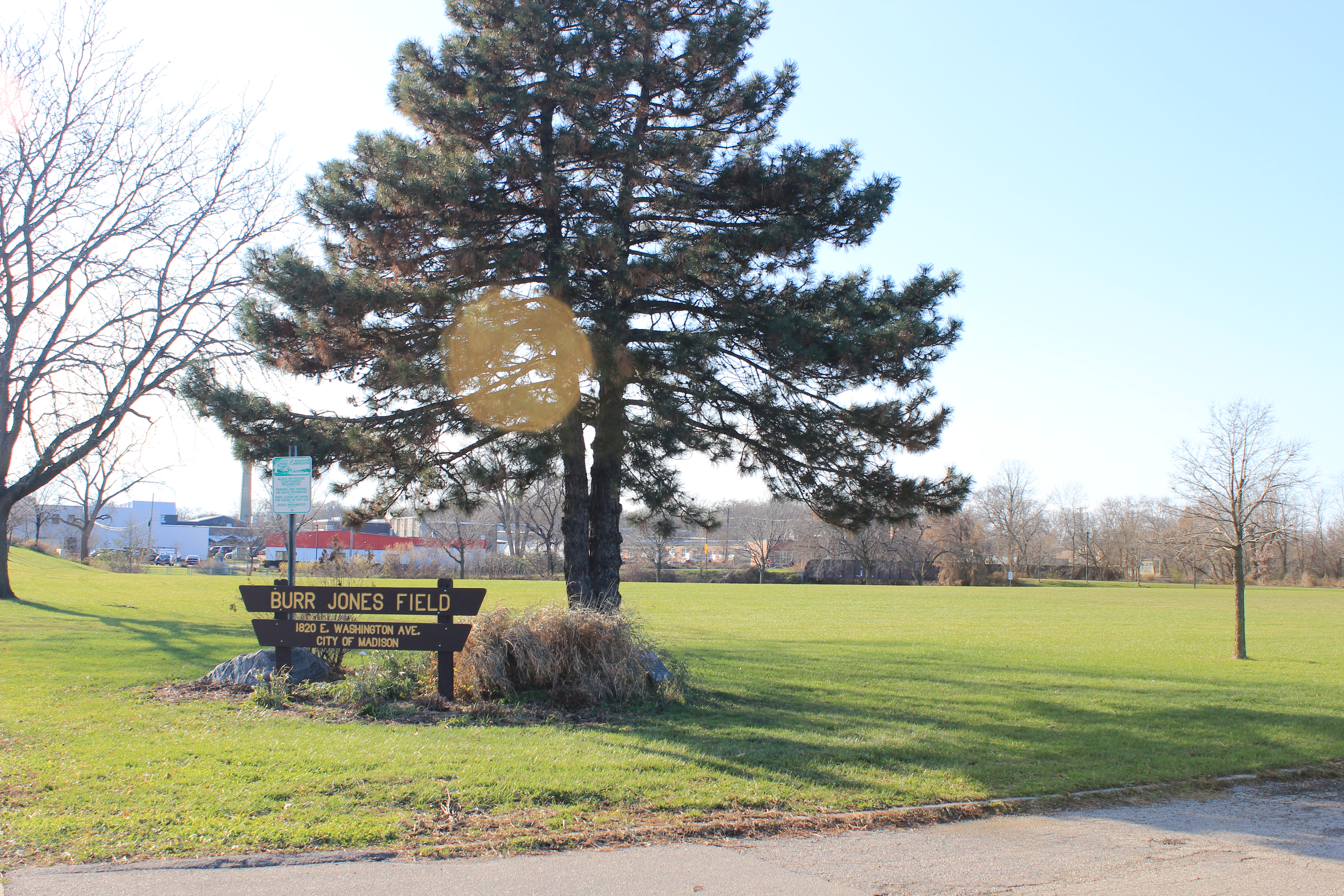

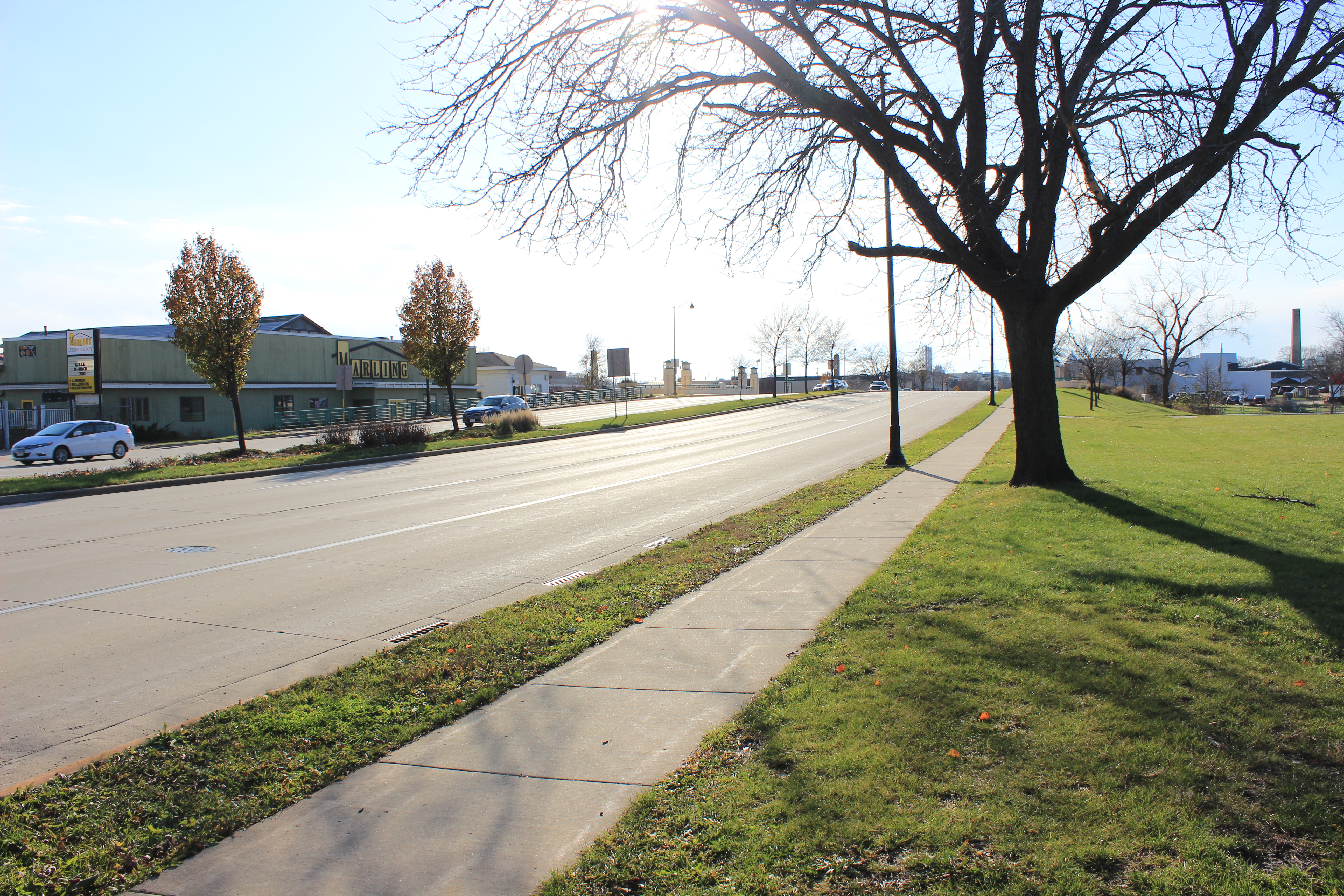

(Y-1) Yahara Station would be situated at Burr Jones Park.

---

---

Image: Veronica Plum

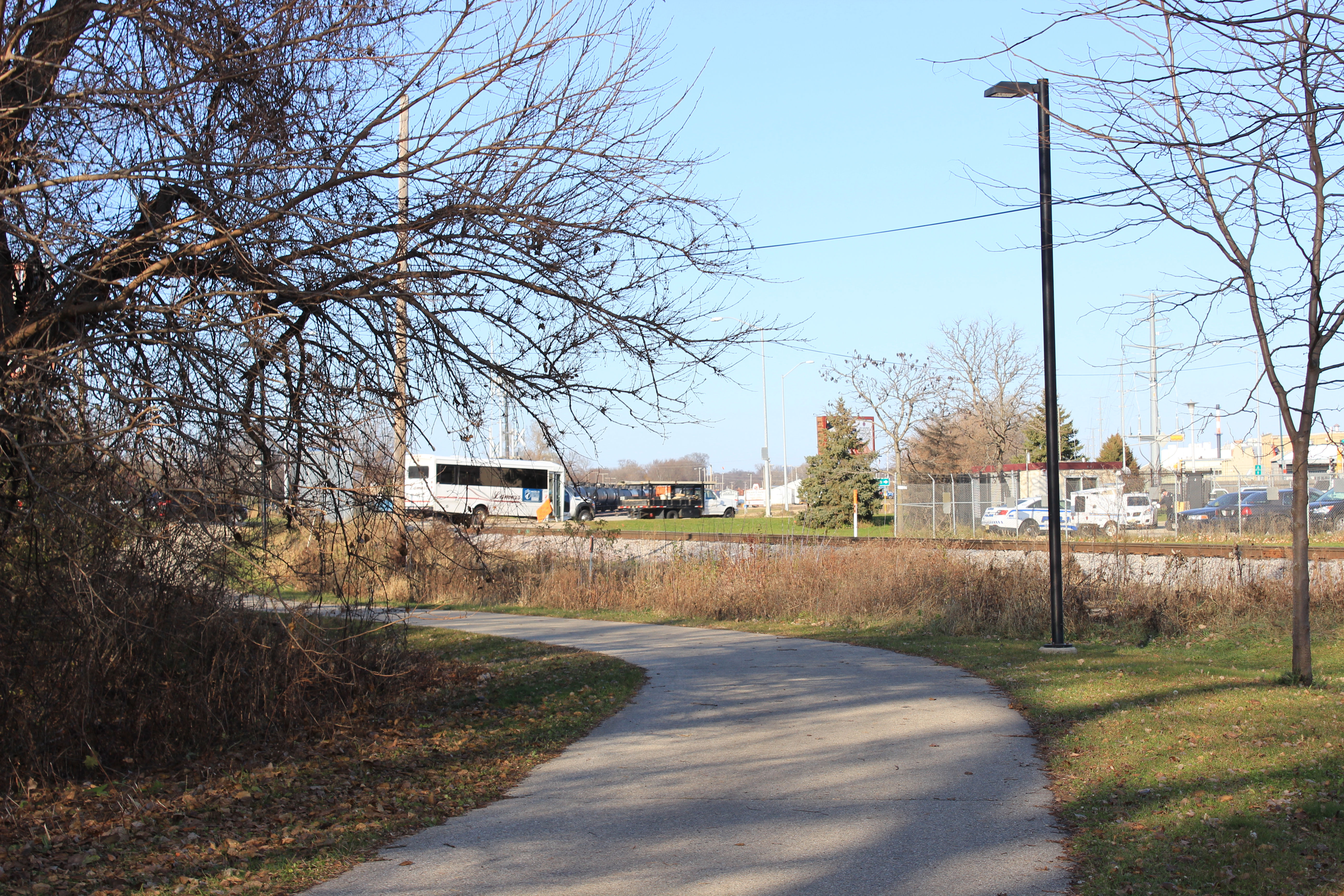

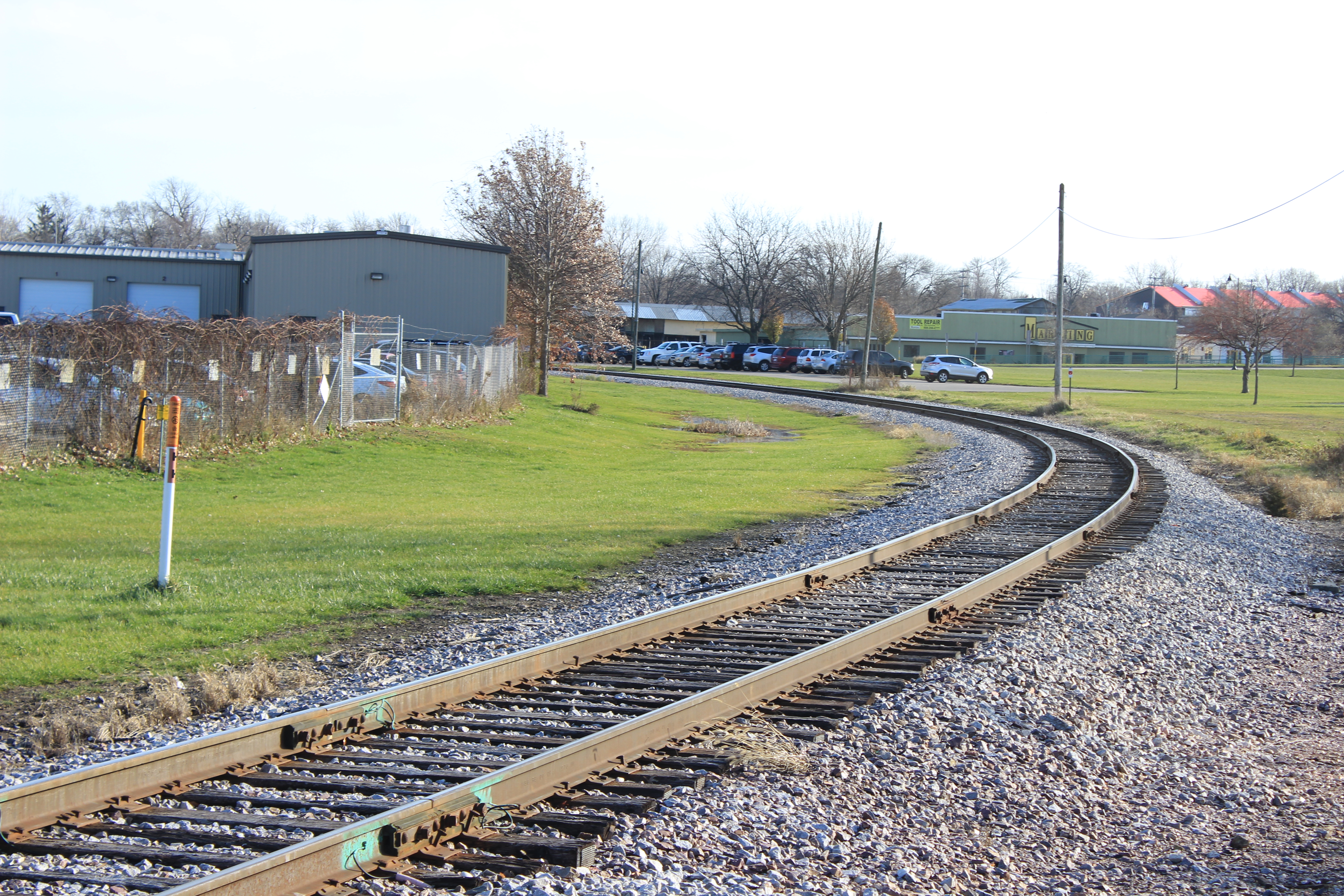

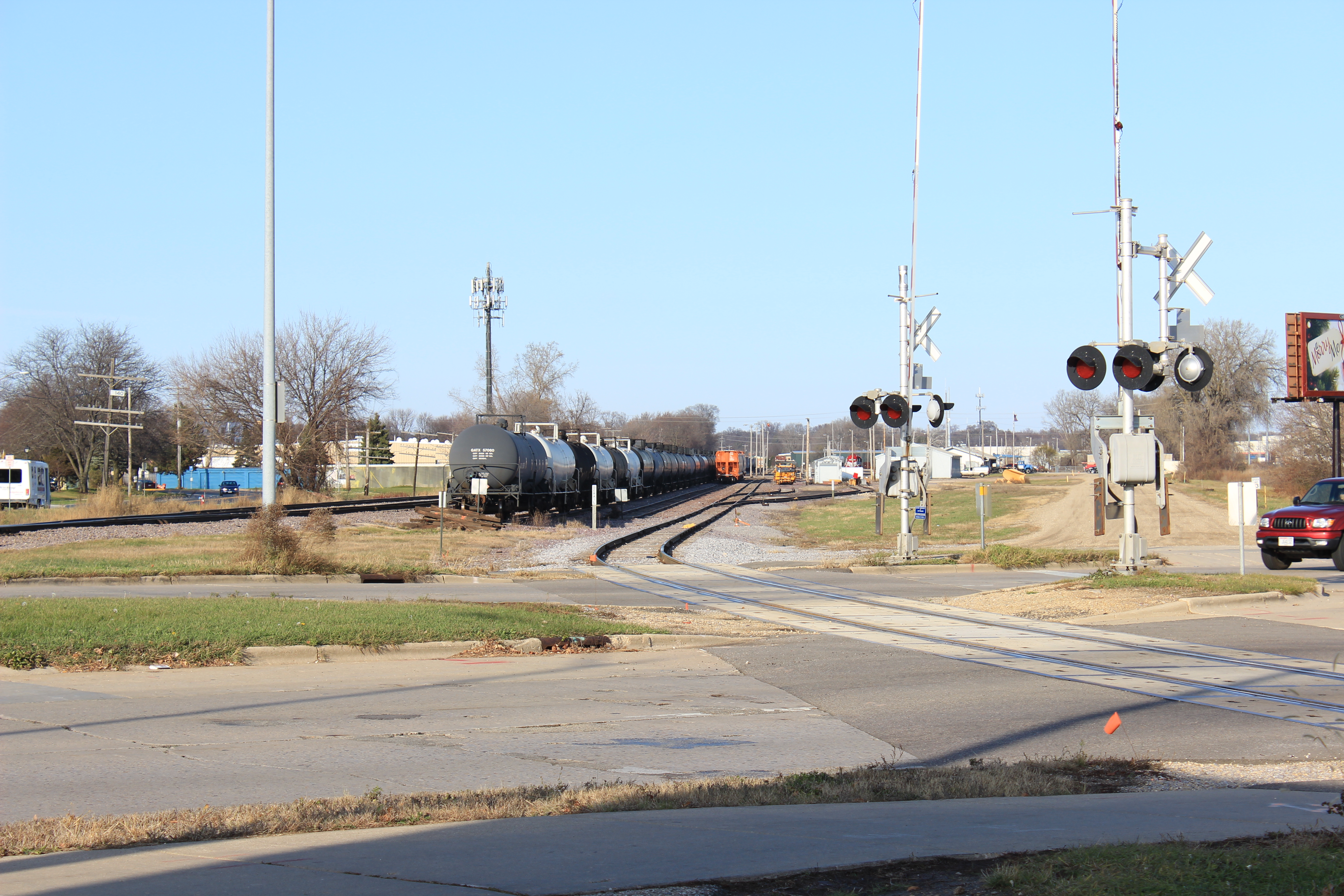

(Y-2) The existing rail.

---

---

Image: Veronica Plum

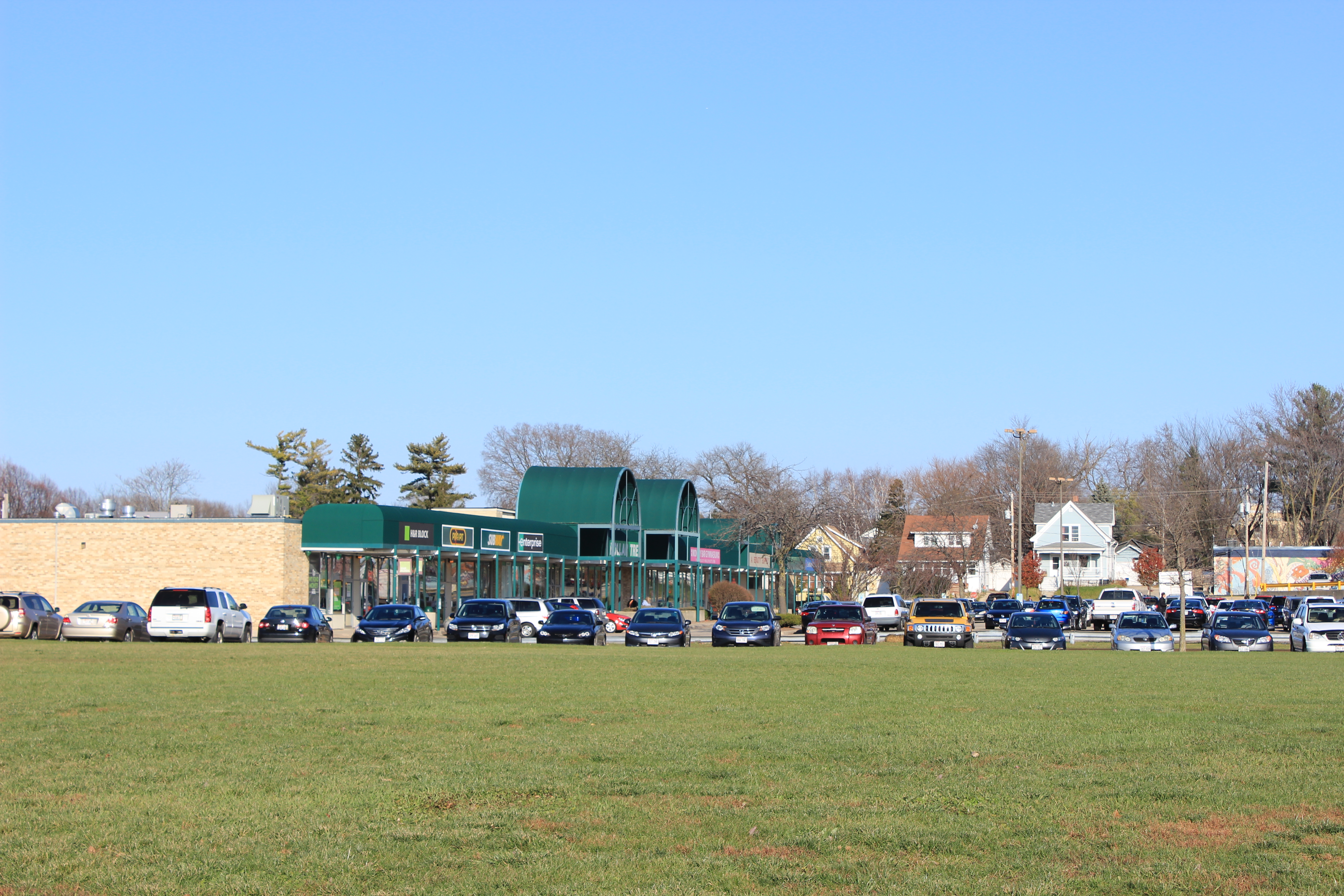

(Y-3) Fiore Shopping Center, a building that may be an obstruction to the station.

---

Space:

An open field with a small shopping mall nearby, the Yahara Station could draw development to this area. It is east of the downtown, away from activities that could further congest the isthmus. The Fiore Shopping Center and a government building may be effect or a path could be negotiated to work around this area. is the only pre It is probably the best medium between all the stations for satisfying the passenger’s need to reach their destinations in Madison. The airport is only 10 minutes by car, and an express bus service could bring the current public transport time of approximately 30 minutes close to the time travelled by car. It is a shorter travel time to the capitol and downtown. In recent years, there are been a handful of residential developments that have popped up. Nearby, there is a waterway. Assessment says there are not waterway impacts, but could have an influence on the wetland. Additionally, the government building was observed by our research time to collect hazardous materials, but the assessment stated that hazmat issues would not be a problem. Attractions nearby include Tenney Park, both Lake Monona and Mendota lakesides, and the Atwood neighborhood (food, theater, residential).

Access:

Multiple modes of transportation are capable of reaching this station quite easily. The beltline, also referred to as Highway 151 and I-96, has three lanes to accommodate for the congestion that the station would draw. There are almost fifteen bus routes on the block that a passenger could directly connect to or from. Additionally, the previous study states that no roads would to be permanently shut down for the area to serve as a Madison’s station for High Speed Rail.

Connectivity:

Because no roads would need to be shut down, there is little that could be done to impact Madison’s congestion, or an average person living in Madison’s route to work on a weekday, further. The Wisconsin and Southern Railroad rail yard is just north of where the proposed station would be (see image Y-6). No doubt, adjustments would need to be made. The bike path is very close to the existing rail and would need to be moved a few yards away and may need a fence separating the bikes from the train for safety.

Benefits:

>Potential for development.

>Multimodal accessibility.

>Minimal impact.

Downsides:

>Potential wetland impact.

>Distant to many popular Madison destinations.

---

Image: Veronica Plum

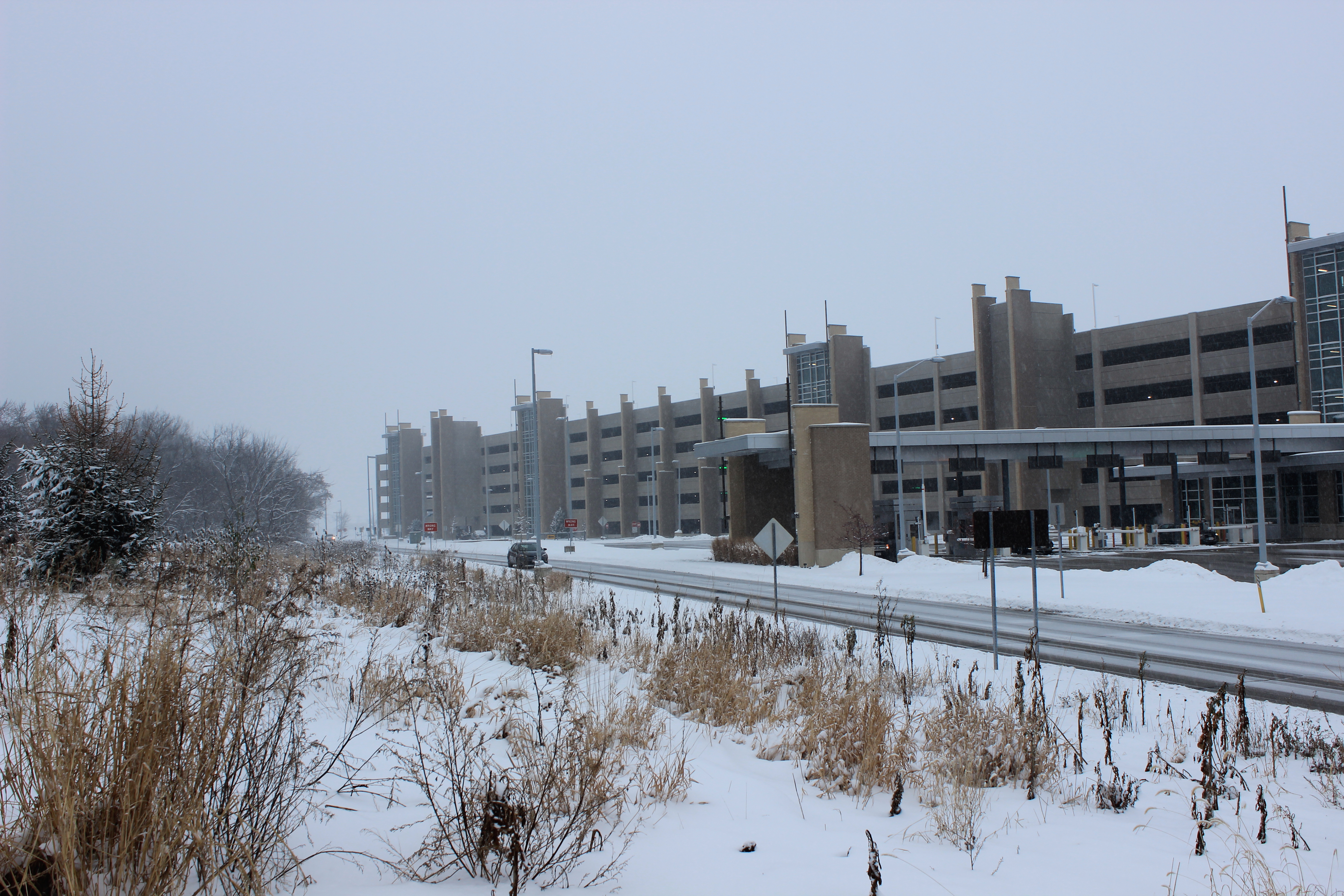

(MSN-1) Dane County Regional (MSN) Airport is located on the periphal of Wisconsin's capitol city.

---

---

Image: Veronica Plum

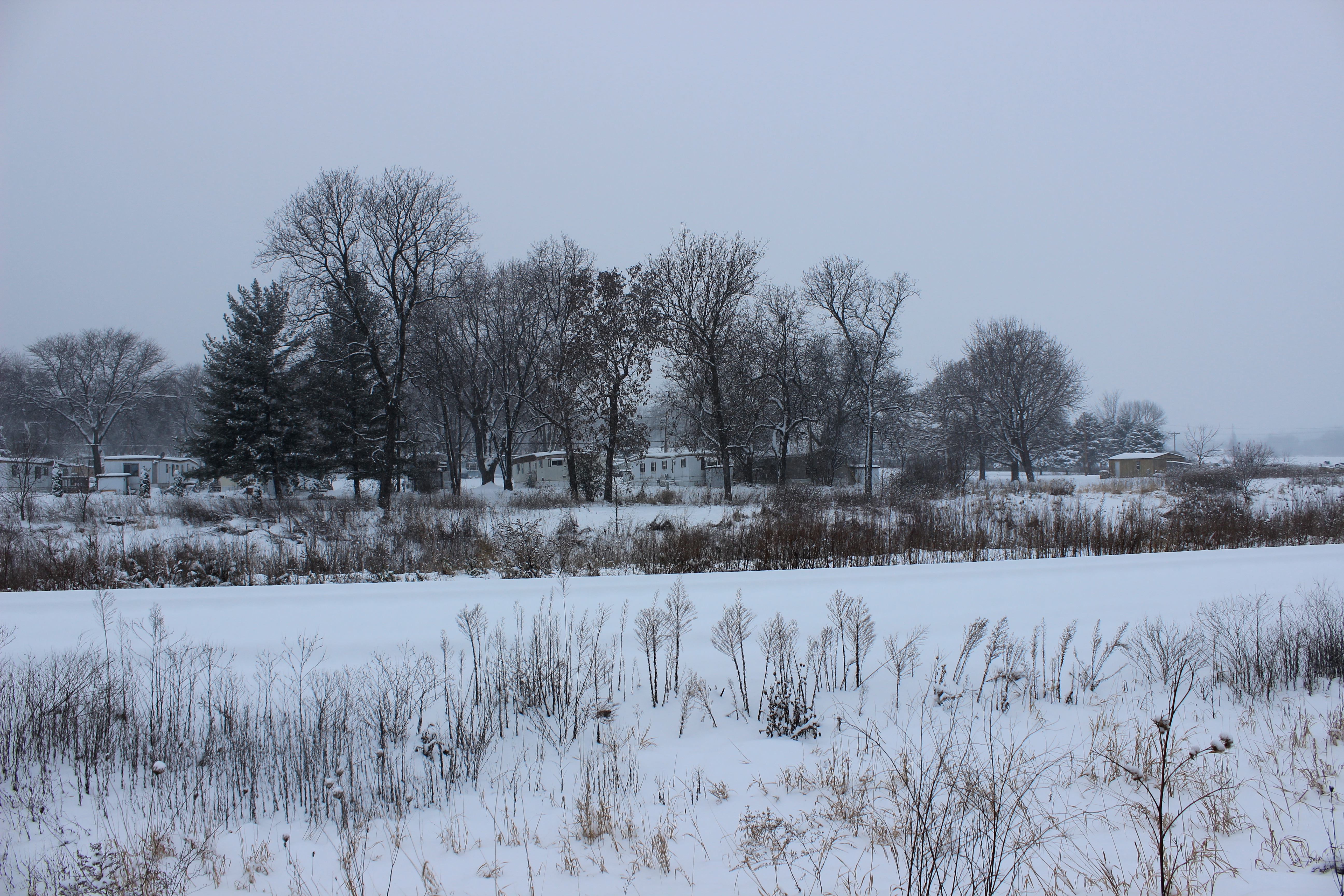

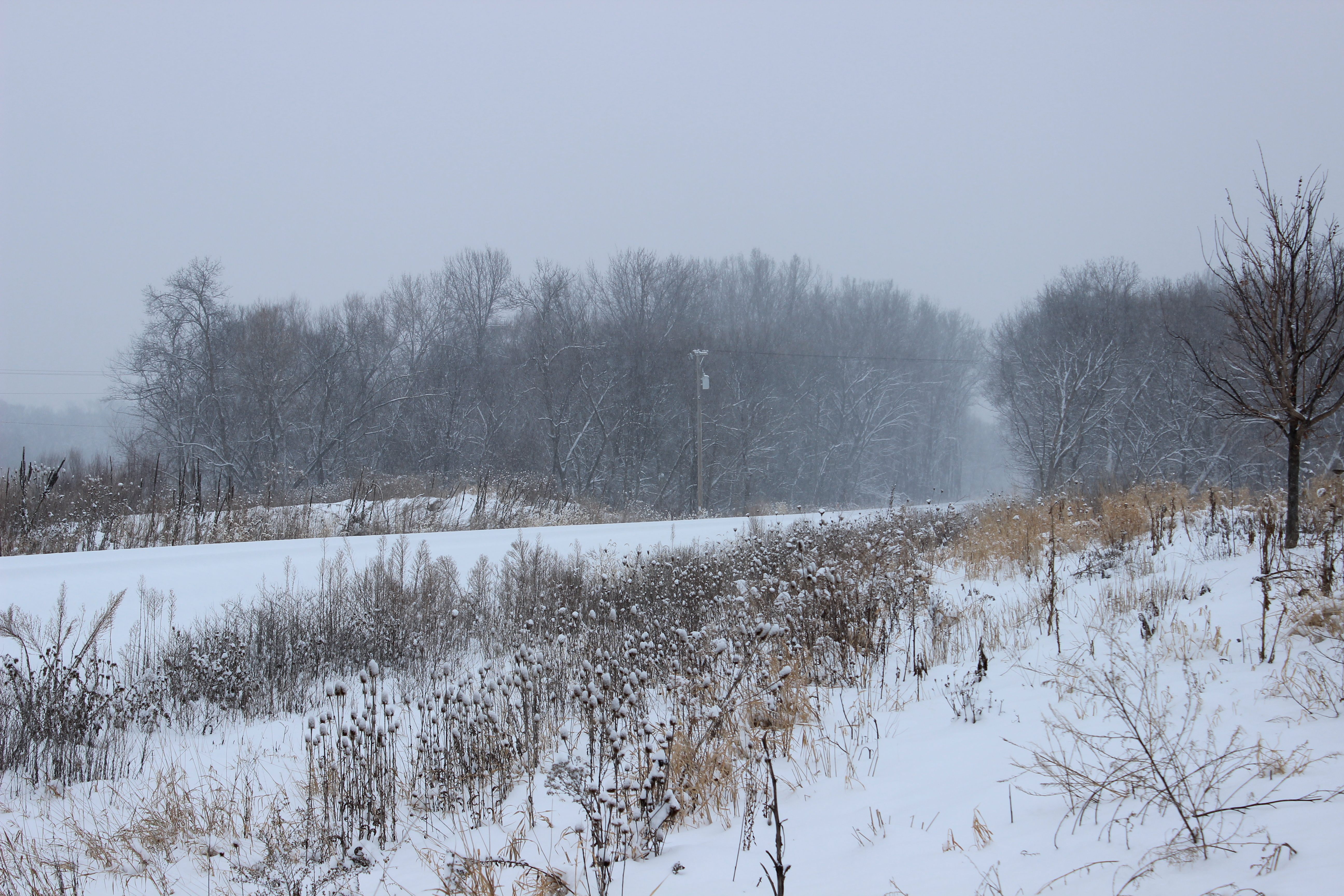

(MSN-2) The track, under the snow, passes closely to the airport where land for development of a Station would be posibile.

---

---

Image: Veronica Plum

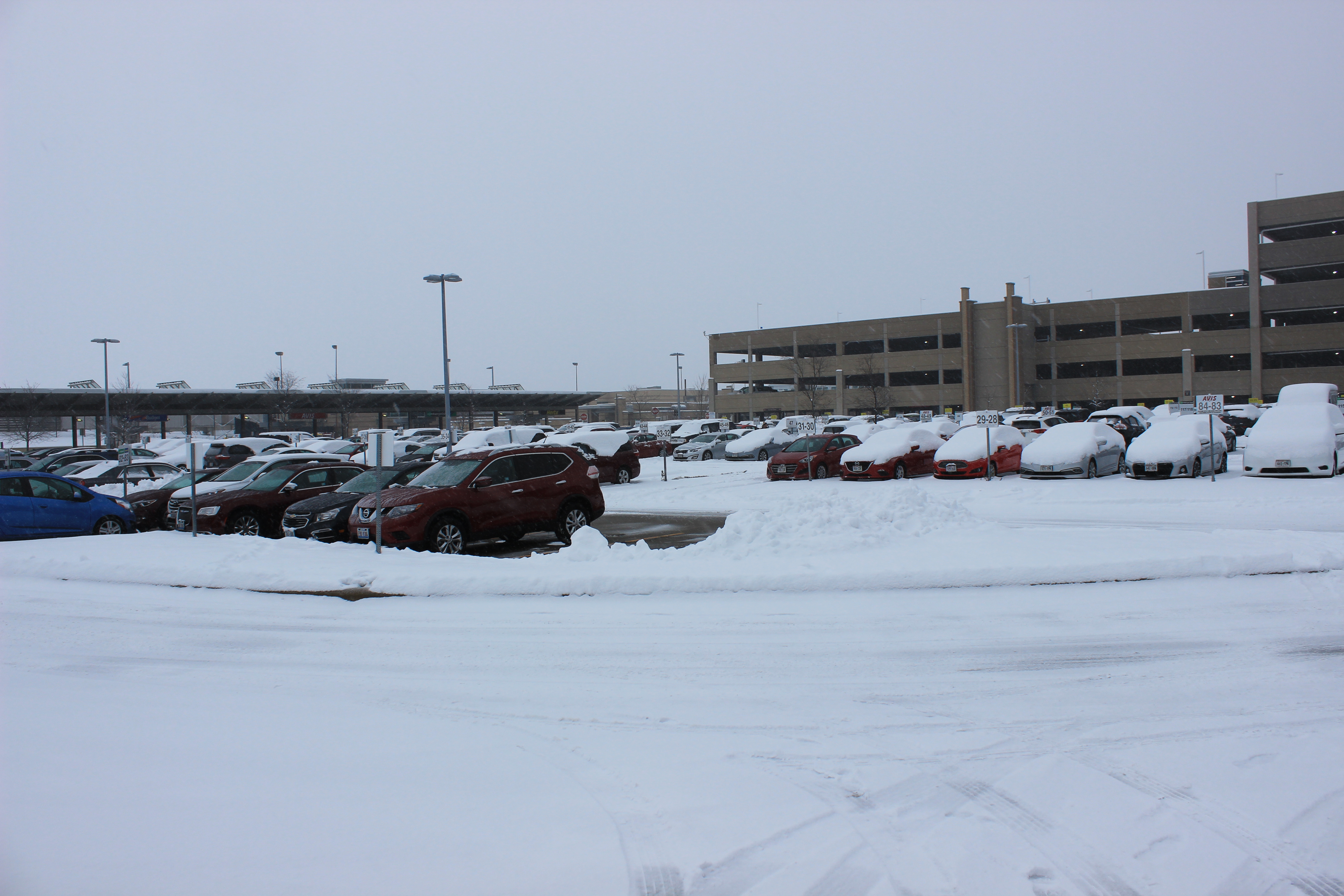

(MSN-3) This image is a continuation of the one on the left. A HSR station could connect to the pre-existing parking lot.

---

Space:

The Dane County Regional Airport is the station that would change overall rail passenger time the least. The proposed structure would rest between the rail and the road leaving the airport (see images MSN-2 and MSN-3, they are a continuation of each other). Past the railroad, further to the left on the MSN-2 image, is a residential community (pictured in image MSN-5). While the original assessment stated there would be no environmental impacts, it should be noted that Cherokee Marsh is somewhat nearby. Perhaps, there should be further research in this area.

Access:

There is only one bus route that can take an individual straight to the airport (route 20, usually a continuation of the 6 at North Transfer Point). The station would be easily accessible by car and long term parking would be provided. Access to and from for bikes and pedestrians is highly unlikely, and taxis are plenty: this forces an individual into a situation where one needs to spend money to get to and from the rail station.

Connectivity:

Little impact would be made on everyday movement in Madison with a station so far outside the heart of the city. Depending on passenger numbers, lanes may need to be expanded from the airport connecting to 151.

Benefits:

>Least impact on existing movements within Madison.

Downsides:

>Lacks multimodal transport.
